Single Girder Overhead Travelling Crane

Powerhouse With Strength In Reserve

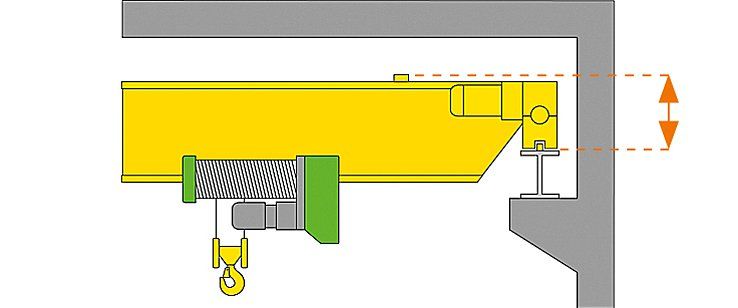

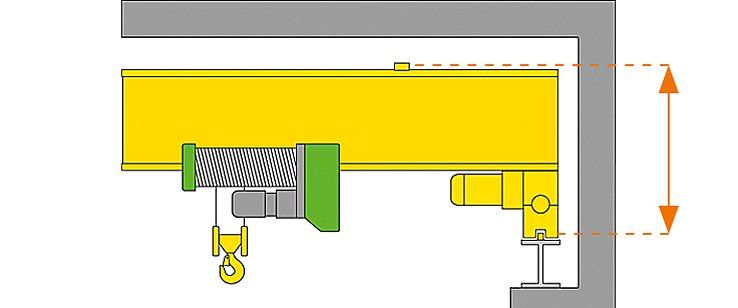

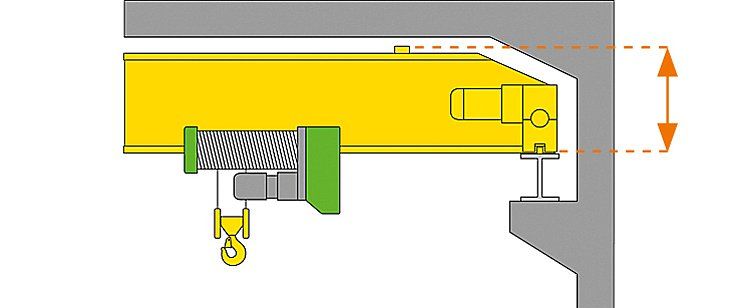

The single girder overhead travelling crane lifts safe working loads to 16,000 kg. The crane bridge girders are adapted individually to the ceiling construction with different connection variants. This allows optimum utilisation of space. The lifting height can be increased further by using a cantilever crab with extremely low headroom or a chain hoist in extra short headroom trolley design. In their standard version all bridge cranes are equipped with festoon cable power supply line along the crane bridge and with control pendants. Radio control is possible on request.

Competent local partners, many of whom are certified, plan, produce and install single girder overhead travelling cranes with high-quality technology from STAHL CraneSystems. You can find the right contact on our contacts page.

Flexible, adaptable through different installation variants
Low-maintenance, low-noise direct drive with disc brake and centrifugal mass
Smooth starting and braking characteristics: with frequency inverter as an option
Explosion-proof versions or off-standard solutions through engineering
Worldwide network of certified partners, crane manufacturers and system builders

Slide title

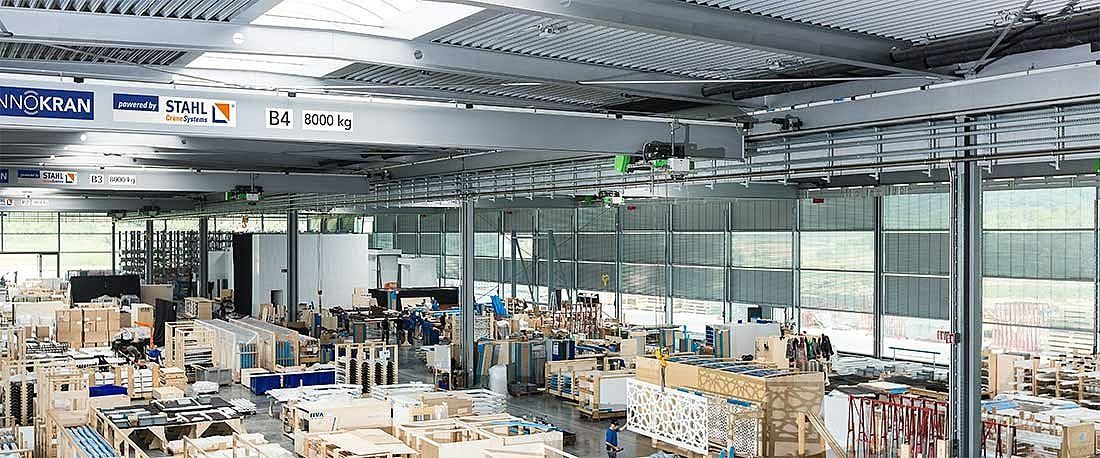

Thanks to the design of this single girder overhead travelling crane, which was adapted individually to the hall situation, a low warehouse was converted into a production hall.

Button
Slide title

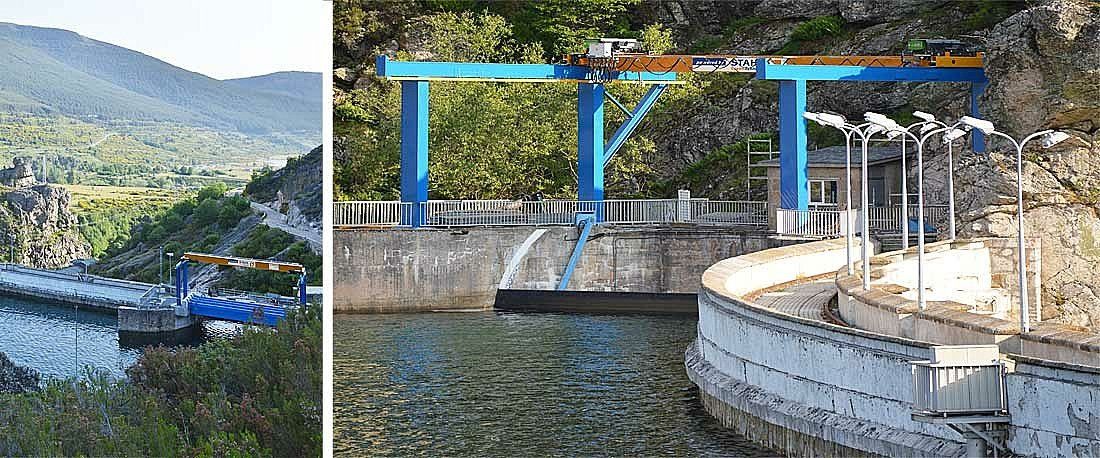

Single girder overhead travelling crane with two SH wire rope hoists at the sluices of the Camporredondo dam in northern Spain.
A single girder overhead travelling crane is used to open and close the cofferdam sluices for maintenance work on a sluice.

Button
Slide title

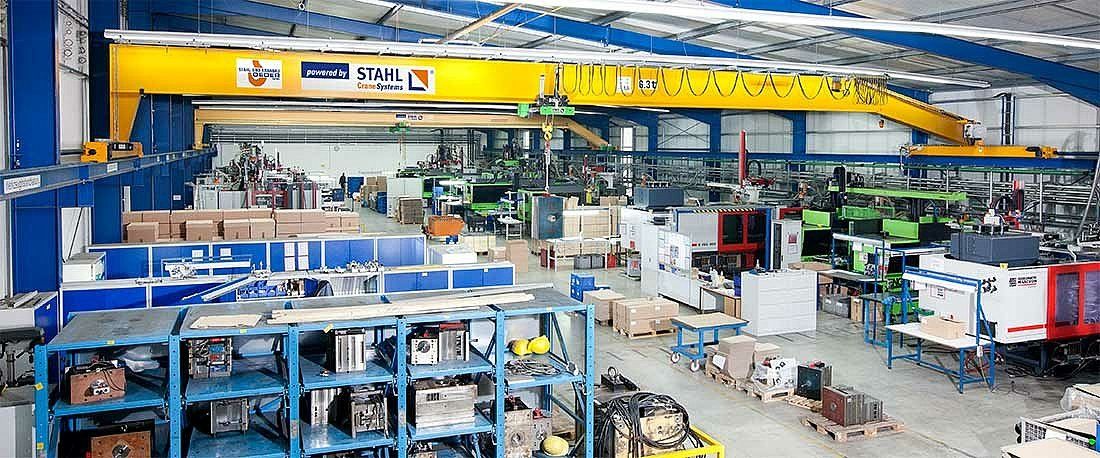

Single girder overhead travelling cranes with components from STAHL CraneSystems see to a smooth flow of material in a factory.

Button
Slide title

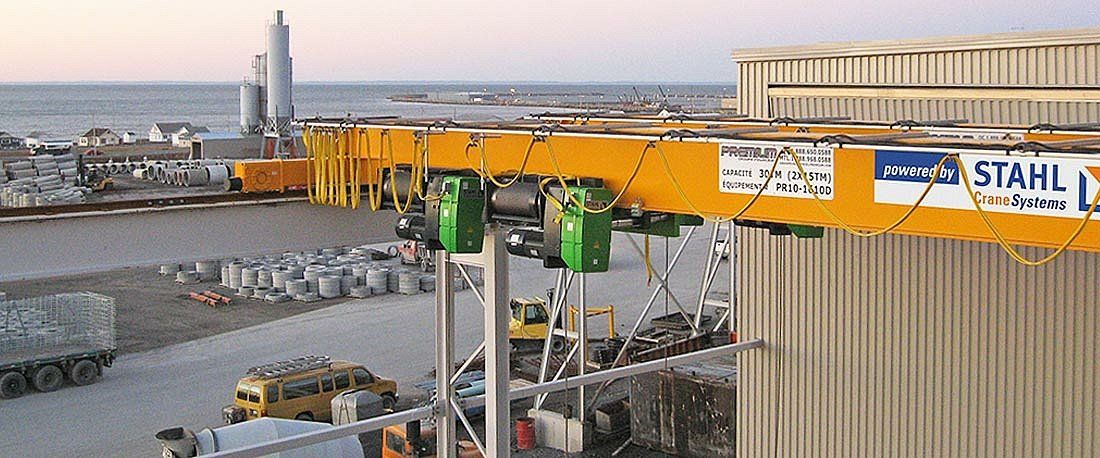

This factory site boasts a total of five single girder overhead travelling cranes, each with two SH wire rope hoists working in tandem. They help to load casting moulds on to trucks.

Button
Slide title

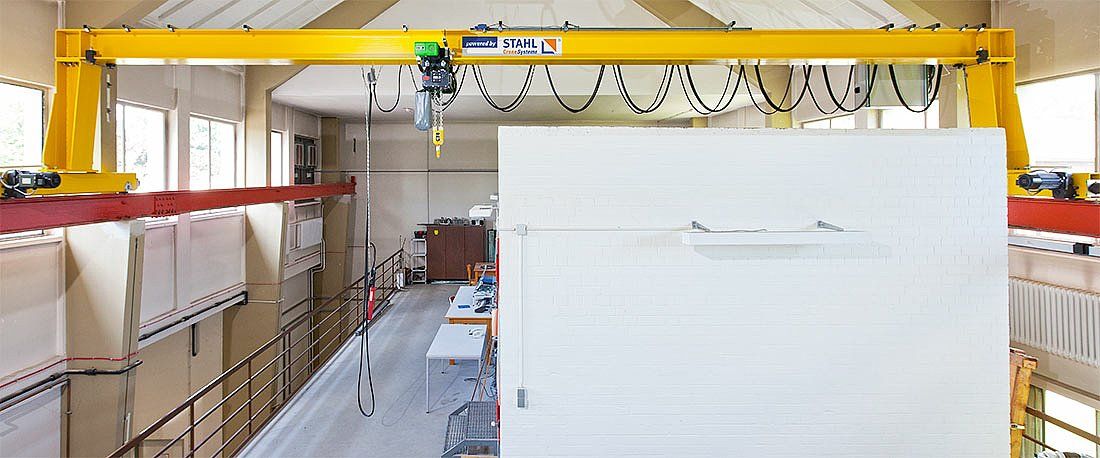

This double jacked, individually adapted single girder overhead travelling crane makes optimum use of the height of the hall.

Button

Models

The different models and trolley variants allow not only a wide variety of uses, but also very individualised solutions tailored to specific requirements.
