Cranes
Cranes

Crane Technologies

Cranes from Stahl Cranes are the ideal solutions for standard applications. They are easy to install and simple to use, and make working on machines in production bays and warehouses easier.

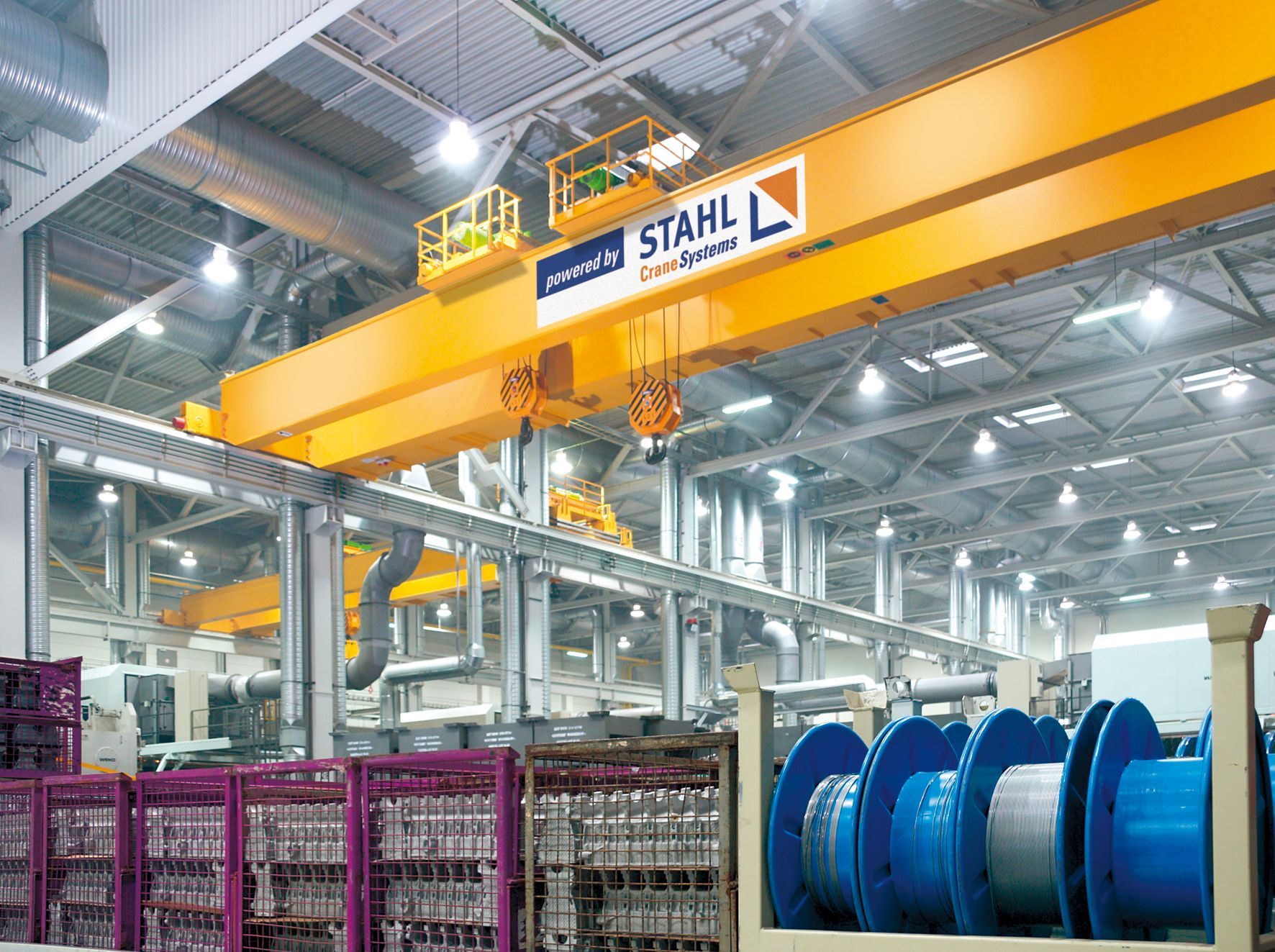

Overhead Travelling & Suspension Cranes

What a good thing it is when the classics under the roof come from Stahl Cranes. Then the tried and tested functions are achieved with an intelligent design and the most up to date technology.

  • Overhead Traveling & Suspension Cranes
    • Single girder suspension cranes up to 10,000kg
    • Single Overhead girder traveling cranes up to 16,000kg
    • Double Overhead girder traveling cranes up to 16,000kg
    • Also for use in hazardous areas
    • We are the experts in explosion protection
  • A range of cranes to suit all your requirements
    • Our engineers provide on-site consultation
    • Easy to assemble components to ensure minimum assembly and maintenance time and thus low costs
    • Optimized component modules and certified quality assurance with DIN ISN 9001/EN 29001 guarantee consistently high quality and short delivery times
    • An after delivery: Our qualified maintenance team will carry out the legally stipulated inspections availability even after many years

Innovative Crane Technology

As of now, Stahl Crane Systems GmbH is offering single girder overhead travelling cranes up to a safe working load of 16,000kg with an innovative control concept achieving a new level of safety and operator friendliness. The technology has ben developed in collaboration with system partners who play leading roles in their particular fields.

  • Technical Features
    • Single girder overhead traveling cranes up to 16,000kg with radio control as standard.
    • Wireless signal transmission replaces cable control pendants
    • Main power supply with 4 pole conductor line
    • Low maintenance, no cables susceptible to wear
    • No loops mean no space gains
    • Plug and socket connections for all electrics as standards
  • A choice of three radio transmitters
    1. Quadrix compact transmitter, a mere 330g in weight
    2. Micron six pushbutton transmitter
    3. Spectrum one joystick transmitter
Cranes

Certification

As a certified company it is your responsibility to engage companies for the accident prevention regulation test maintenance of your material handling systems who are themselves certified and whose staff are qualified persons as defined by the Decree on Safety in Operation.

Cranes

Single Girder Suspension Cranes

The optimum up to 10,000kg S.W.L and spans open up to 20m

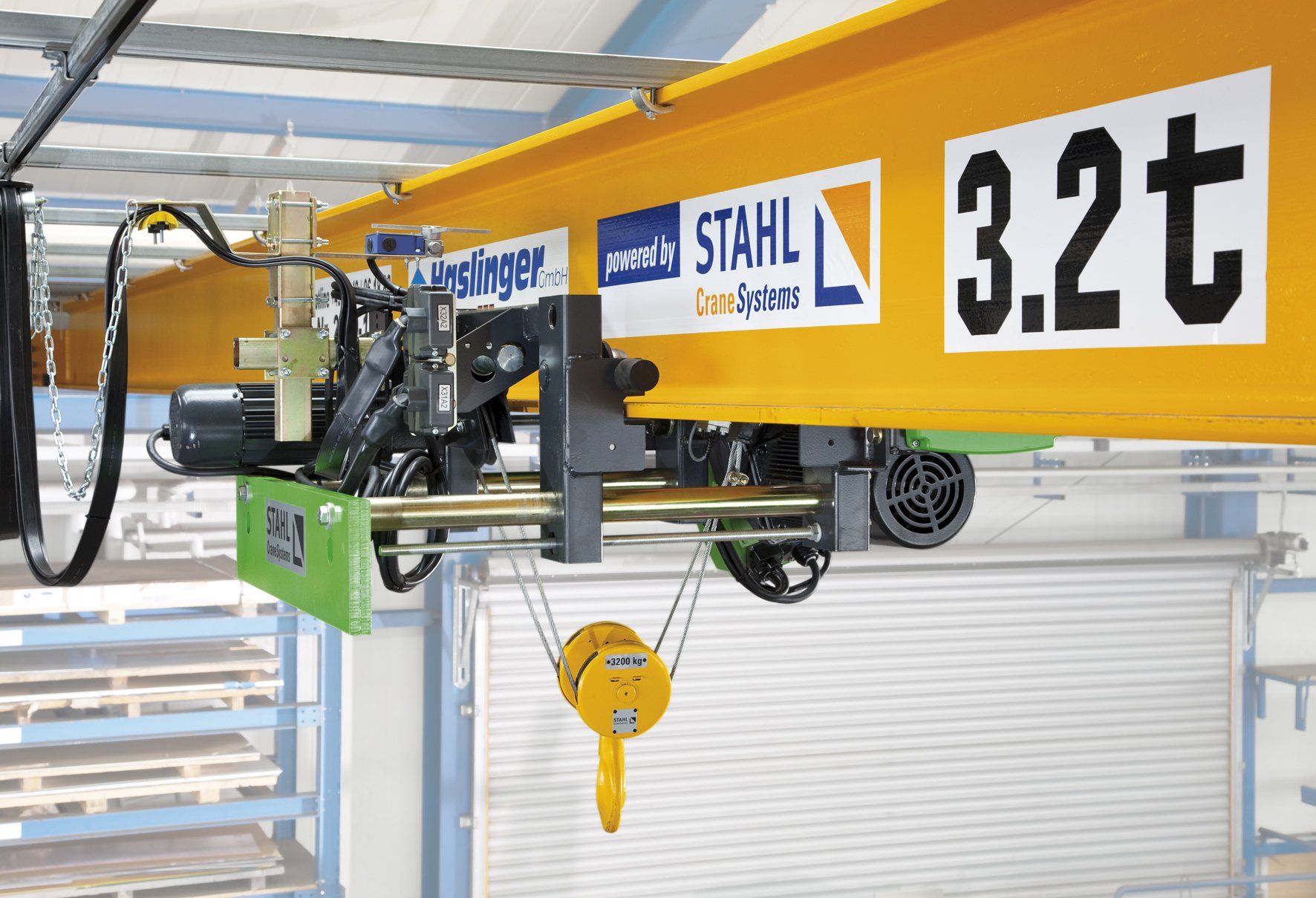

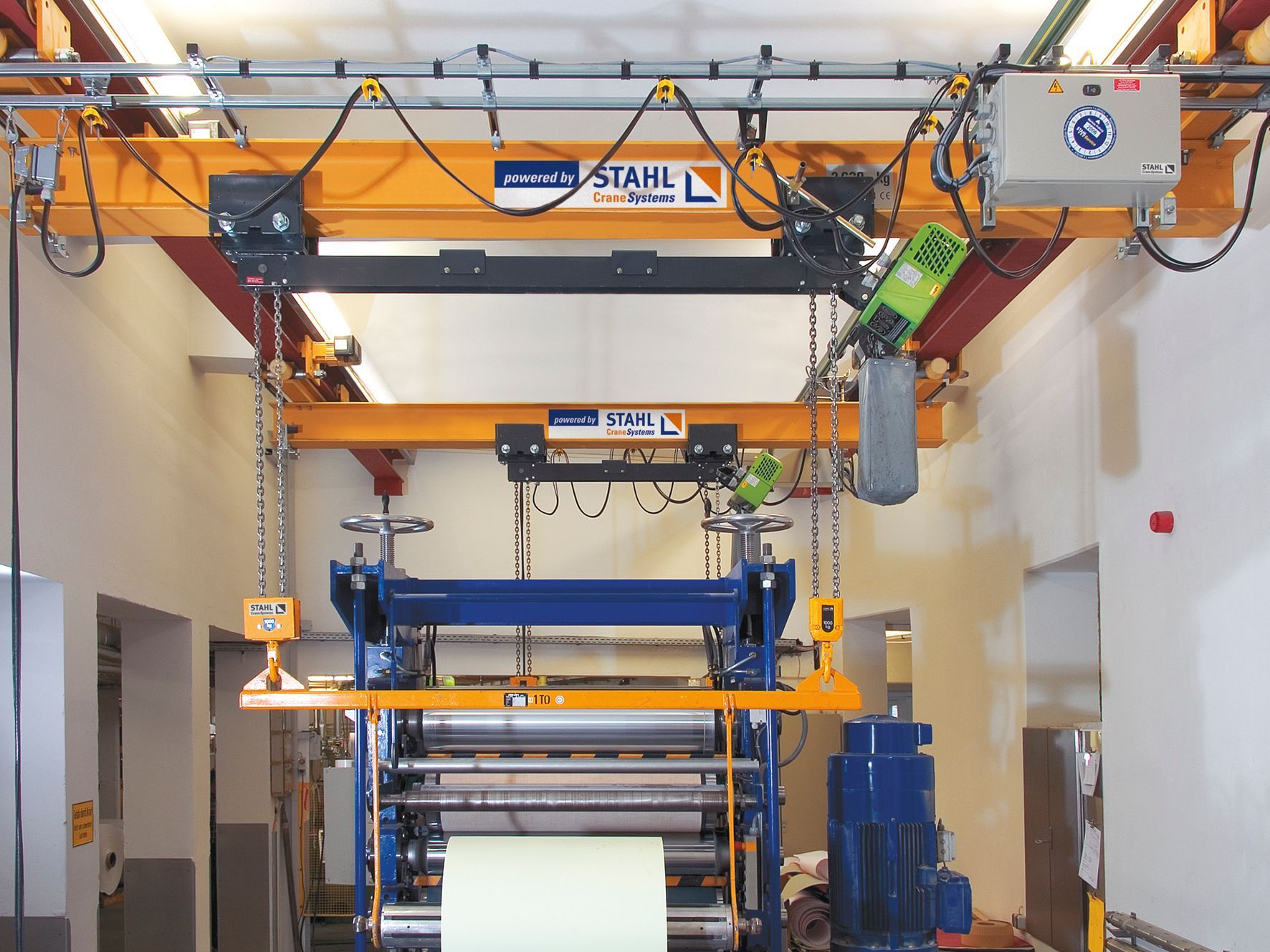

The single suspension crane from Stahl Cranes Systems needs very little space. It runs on the lower flange of the crane runway which mounted directly on the ceiling and achieves greatest utilisation space possible.

  • In particular, in the case of restricted production areas, this permits optimum utilization of the width of the room.


    Suspension cranes in neighboring bays can be connected; the crane interlock functions completely free of jolts and knocks. The hoist can be moved onto the neighboring crane together with its load and can reach any destination in the interlocked system.

  • Technical Features

    Compact

    Minimum approach dimensions and efficient utilization of the available ceiling height.


    Long-Lived

    Robust rolled steel sectional girders and welded box girders for the crane bridge, optionally in EH-A or EH-B version.


    Convenient

    Quite travel, smooth starting and braking.


    Wide-Ranging

    Crane interlocks free of jolts and knocks for overhead material transport across bays.


    Choice

    Of flexible flat cable or contact-free conductor line as a power supply to the hoist


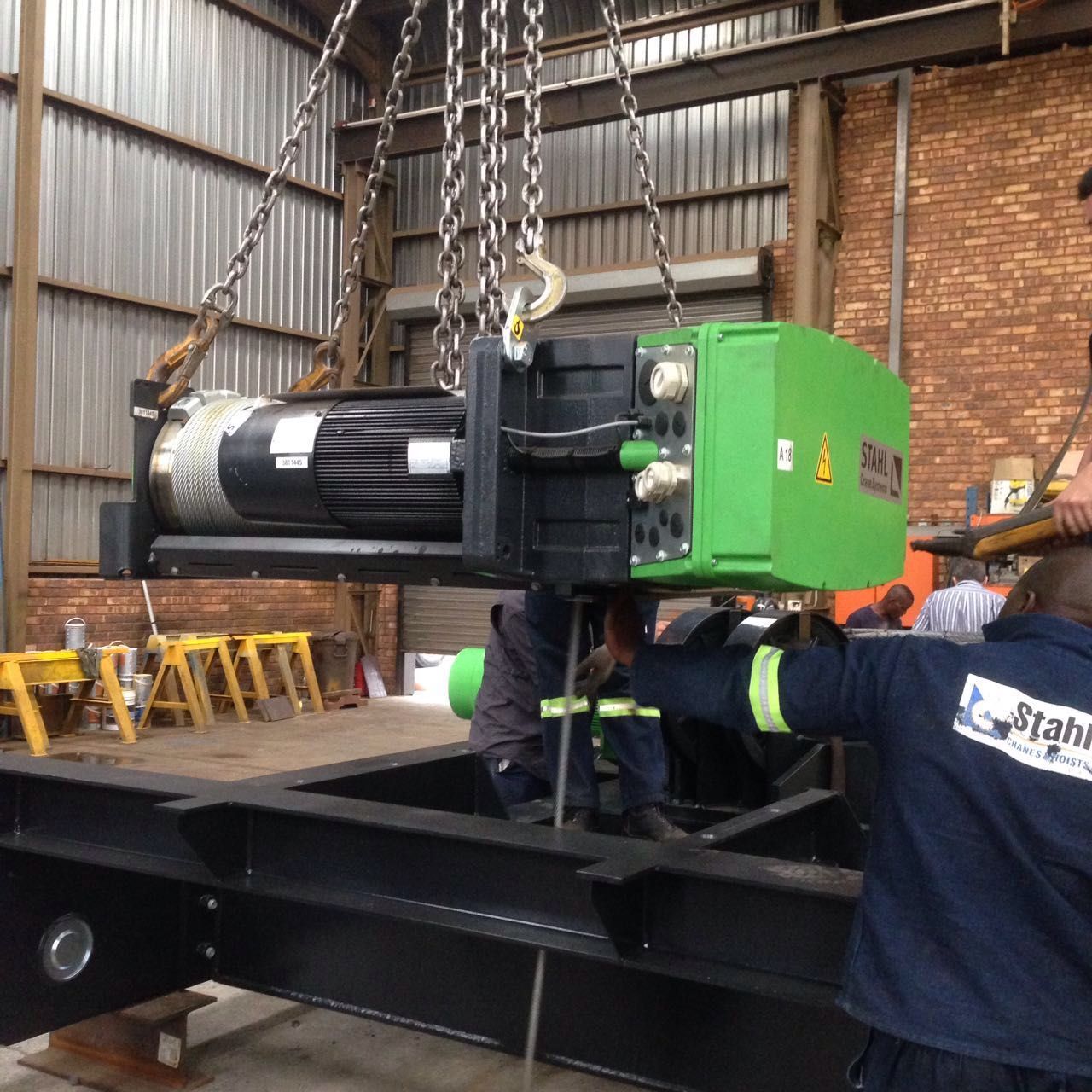

    Lifting

    Optionally with chain hoist up to 6,300kg or wire rope hoist up to 10,000kg S.W.L.

Single Girder Overhead Travelling Cranes

Adaptable up to 16,000kg S.W.L  and spans open up to 30m

The single overhead travelling crane from Stahl Crane Systems is flexible and astonishingly adaptable. It rans on the top flange of the crane runway.

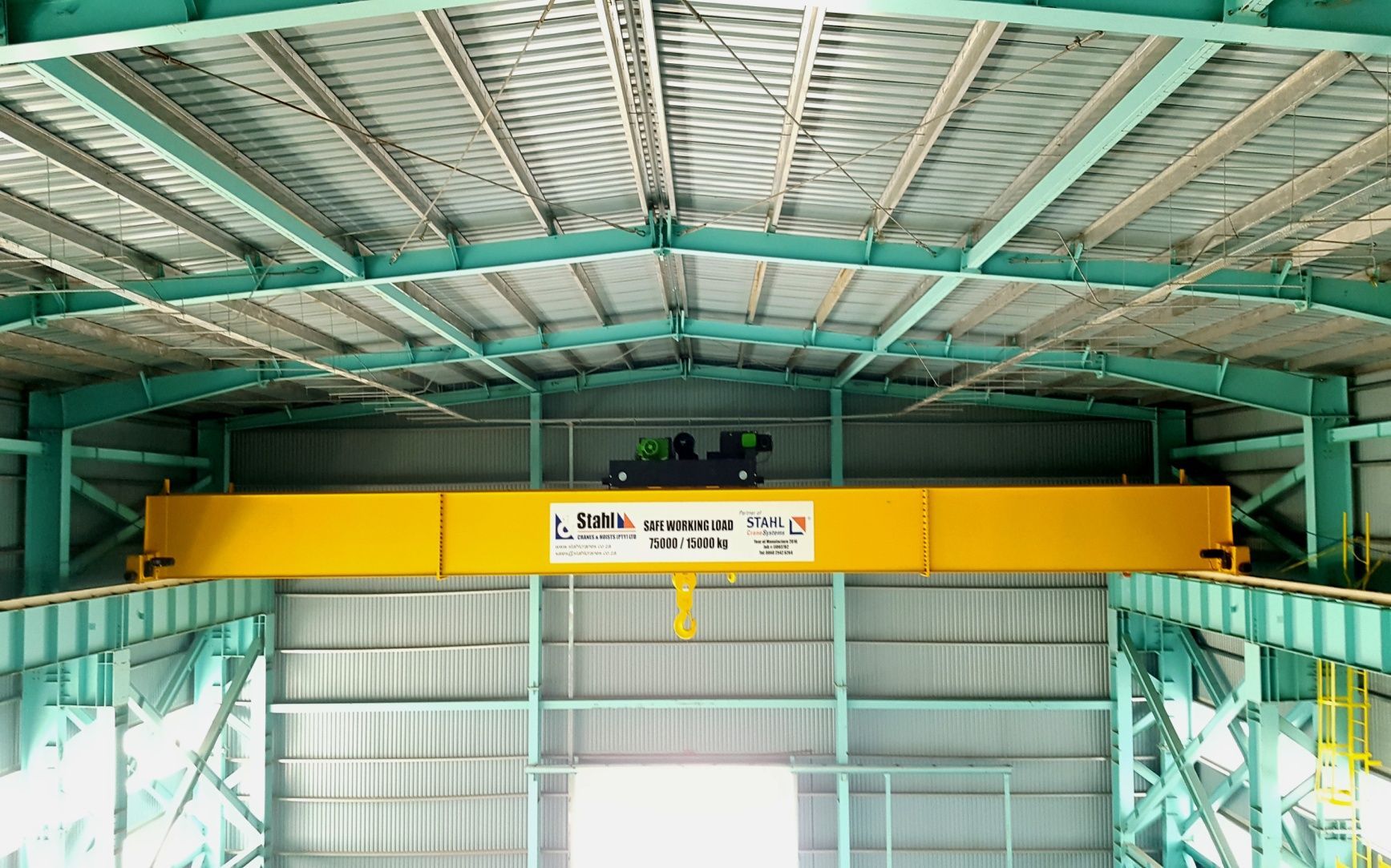

  • Its use enables rational, economical flow solutions to be achieved even in low or small buildings. The existing space can be utilized to the fullest by using various installation variants. The crane bridge girder can be individually adapted either flush on the top (EH-A), flush at the bottom (EH-B), or raised up (EH-C). A clearance of approx. 100mm to the ceiling is specified for single girder overhead traveling cranes.


     Particularly in low ceilinged rooms, this permits minimum headrooms and optimum adaption to the building profile. The height of the lift can be increased even further by using a cantilever crab from Stahl Cranes Systems.


    Three hermaphrodite cranes were designed partly from suspension and partly from overhead traveling components. The cranes were designed as overhead traveling cranes, but due to the wide span of 51m were equipped with an extra suspended trolley in the center. The three-point suspension permitted a crucial reduction of the weight and headroom of the crane bridges. The three off-standard cranes can be operated synchronously from a single radio control if required. Combined with the synchronous operation, they can transport up to 45,000kg.

  • Technical Features

    Perfect

    Extremely adaptable thanks to various installation versions.


    Resilient

    Drives calculated for rugged conditions of crane duty.


    Computer Optimised

    Sturdy rolled steel sectional girders or welded box girders for the crane bridge.


    Convenient

    Low noise generation, smooth start, and braking.


    Choice

    Of flexible flat cable or guarded conductor as a power supply to the hoist.


    Accurate

    Laser measurement of wheel axels for smooth running characteristics and low wear.


    Lifting

    Optionally with wire rope hoist or winch.



Cranes
Cranes

Off Standard Cranes

Practical Experience

Stahl Cranes Systems enjoys every customer specific challenge. Only when your individual solution needs to be planned, from a single hoist to custom build cranes to computer controlled automation, do we really have to extend ourselves.

  •  Then our flexibility dynamism is brought to bear. The highly motivated, experienced engineers and technicians at Stahl Crane Systems combine their comprehensive know-how with your specifications and ideas. Economical standard components from the whole range of products are used as well as components.  With your input, in a constructive process, a solution is achieved that is practical, individual, and precisely adapted to your application.


    Component

    Numerous examples both in Germany and abroad prove the competence of Stahl Crane Systems in the field of custom-built solutions.

  • Technical Features

    High Performance

    Experience and know-how from more than 70 years of crane manufacture and centralized production.


    Innovative

    Continuing development of the hoists and crane components.


    Individual

    Customer-specific system solutions.


    Partnership

    Joint planning in consultation with our customer.


    Safe

    Top-quality ensured by a certified process.


    Rigorous

    Statics and engineering to the latest DIN  and EN standards.

Modular

The perfect complement to Stahl Crane Systems are crane components from our own production.

  • Forward-looking, high-quality components complement each other in the system and offer safety and economical use. With the aid of the modular components, the crane system is individually adapted to customer-specific wishes.

  • Technical Features

    Optimised Crane Endcarriages

    KEL for a single girder overhead traveling cranes:

    5 Wheel diameters and 5 wheelbases.


    KZl for double girder overhead traveling cranes:

    5 wheel diameters and 6 wheelbases.


    KEH single girder suspension cranes:

    4 wheel diameters and 3 wheelbases.


    Versatile Sf Crane Travel Drives

    Supply as standard with two two-step speeds 20,5 or 40/10m/min, other speeds available on request. Stepless speed control as an option.


    Flexible Operation

    Cable connected STH manual control pendant micro and quadrix pushbutton transmitters and spectrum joystick transmitter.


    Power Supply Along Crane Bridge

    Conductor line (in conjunction with radio technology) festoon cable (in conjunction with control pendants)


    Crane Control

    Pannel box with plug connections ( in conjunction with radio technology) panel box with terminal connections.

Cranes
Cranes

Crane Equipment

Performance Enhancing

In addition to the crane components, are great deal of additional mechanical, electrical and electronic equipment is available from Stahl Crane Systems.

  • This increases the performance of the crane still further and makes working with it particularly convenient. More important, however, is the fact that state-of-the-art equipment improves process reliabilty and safety at work. The wide spectrum of crane equipment permits practical, safe solutions with extremely high cost-effectiveness.

  • The 10 Most Frequently Ordered Features
    • Cross and long travel switches.
    • Radio remote control with pushbutton or joystick transmitter.
    • Load monitoring and lifetime calculation with SMC for wire rope hoists.
    • Stepless speed control.
    • Off standard corrosion protection systems.
    • Maintenance platforms along crane bridge.
    • Anti-collision devices with light barriers.
    • Equipment for outdoor use.
    • Large-format LCD load display.
    • Spreader beams and sling equipment.

SR Wheel Block System

The components of the SR modular wheel block system drive from Stahl Crane Systems field proven series programme. A number of different mounting methods guarantee universal and extremely flexible use.

  • Technical Features

    Universal

    Can be used for wheel loads from 5,000kg to 30,000kg in six frame sizes.


    Flexible

    Five standard configurations for connections to customers supporting structure.


    Reliable

    Sf drives for every requirement, as low maintenance direct drives.


    Choice

    On request, drives with innovative SFD frequency inverter mounted directly on the motor.


    Maintenance-friendly

    The wheel can be simply be rolled out to the front.


    Field Proven

    Series components with maximum performance.


    Compact

    On request with space-saving pancake gear.


    Safe

    As an option, available in explosion-protected design in compliance with ATEX.

Cranes
